The ins and outs of simulation items

Introduction

Together, the hundreds of SimulationItem subclasses residing in the SKIRT/core module (see Subprojects and modules) form the bulk of the SKIRT code. We use the term simulation item class to indicate a SimulationItem subclass and simulation item instance to indicate an instance of a SimulationItem subclass, i.e. a run-time object of that type. When the context allows, we use simulation items to loosely indicate both the classes and the instances.

Unsurprisingly, simulation items play a key role in SKIRT. They represent the configuration of a particular simulation, mapping class and property names to XML element and attribute names in the ski file (or to a question in the Q&A session), and they provide the code to actually perform the simulation and output the requested results.

SKIRT performs a simulation in three distinct phases:

• Construction: the simulation run-time instance hierarchy is created and all property values are set to mirror the contents of the specified ski file. At the end of this phase, all simulation item instances have been constructed. No actual calculations happen in this phase and so it is very fast (on the order of milliseconds).
• Setup: all simulation item instances get a chance to perform initialization and store the results in data members. This may involve reading data from resource files or creating large data structures, so setup may take a long time. At the end of this phase, any probes configured by the user get a chance to write diagnostics or other information about the initialized data structures (such as the spatial media density distribution) to output files.
• Run: the simulation is actually performed by launching a (usually large) number of photon packages and recording the effects. At the end of this phase, the instruments output the mock obervations and any probes configured by the user get a chance to write diagnostics or other information about the simulation data structures (e.g. the radiation field) to output files.

Simulation item instance hierarchy

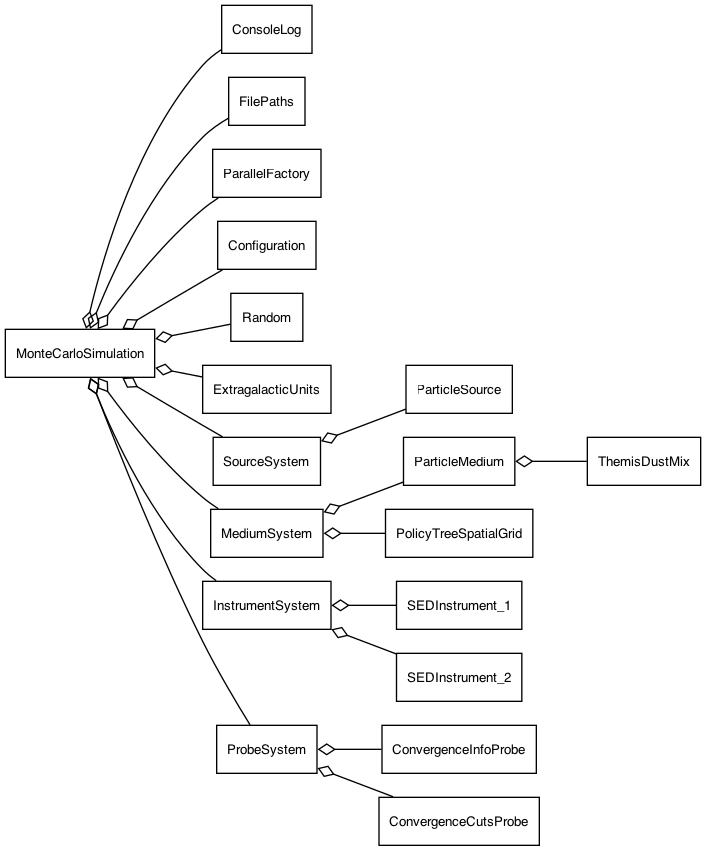

A complete simulation is represented in SKIRT at run-time as a hierarchy of simulation item instances. The following diagram presents a simple example run-time simulation hierarchy (a connection starting with a diamond loosely means "A owns B"):

A run-time simulation hierarchy includes the following information:

• The configuration of the simulation, including all parameters, represented by a combination of:
  • the structural makeup of the hierarchy;
  • the selection of the type of simulation items actually included (e.g. PolicyTreeSpatialGrid rather than another type of spatial grid);
  • the properties of the various simulation items (not shown in the diagram above).
• The functionality needed to perform the simulation and output the results, embodied in the code associated with each specific simulation item class.
• The run-time data needed and/or generated while performing the simulation, represented by data members in each of the simulation item instances.

The run-time simulation hierarchy mimics the contents of the corresponding ski file (see Structure of a ski file) with the exception of the ConsoleLog, FilePaths, and ParallelFactory instances, which are configured based on the command line arguments passed to SKIRT, and the Configuration instance, which automatically assembles some relevant aspects of the configuration (i.e. of the run-time hierarchy) for easy reference throughout the code.

Multiple run-time simulation hierarchies can co-exist and are independent of each other. There is no shared or global data, except when accessing truly global resources such as the console, which are protected by appropriate locking mechanisms.

Simulation item class hierarchy

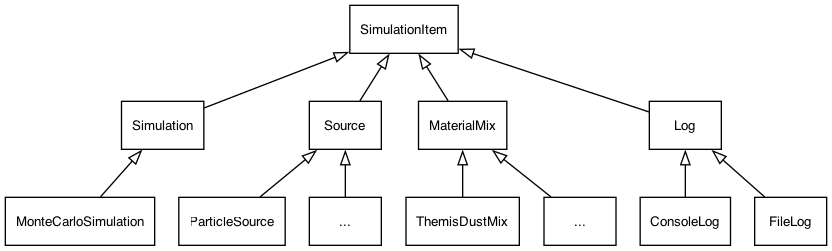

In terms of implementation, all simulation item classes form a tree-like inheritance structure. The diagram below presents a tiny portion of the inheritance tree (for the full version, see SimulationItem):

The leaf nodes represent concrete simulation item classes. Instances of these classes can be part of a run-time simulation hierarchy. The non-leaf nodes represent abstract simulation item classes that can't be instantiated. Thus, simulation items form a compile-time class hierarchy through inheritance (with the SimulationItem class at the top), and a run-time instance hierarchy through aggregation (with an instance of a Simulation subclass at the top).

The basic interface inherited from SimulationItem facilitates common functionality for working with simulation items. For example, the SimulationItem::find() function allows locating a simulation item in a run-time simulation hierarchy simply by providing its class name. Also, the Simulation class cooperates with the SimulationItem interface to setup and run a complete simulation.

Furthermore, SimulationItem subclasses must provide appropriate metadata for use by the SMILE library (see The SMILE metadata subproject). The SMILE library then support various capabilities related to simulation items, including:

• Creating a simulation hierarchy based on user responses during an interactive Q&A session.
• Saving or loading a simulation hierarchy to and from a parameter file in XML format.

The SMILE code has no built-in knowledge about simulation item classes; it self-adjusts to the metadata provided in the respective class definitions. This means that:

• All information about a simulation item is defined in a single place.
• When adding a new type of simulation item, there is no need to add specific code for querying, saving or loading.
• New capabilities (such as a graphical user interface for editing SKIRT parameter files) can be added without changing the existing class definitions.

Requirements for simulation items

To support all of this functionality, a SimulationItem subclass must comply with quite a number of requirements. The class obviously must directly or indirectly inherit the SimulationItem class. The class definition in the C++ header file must start with a section of SMILE metadata definitions describing any discoverable properties for instances of the class, i.e. properties that map to an attribute in the ski file. The metadata definitions use macros provided in the ItemInfo.hpp header file. These macros automatically define the corresponding data members and public getters, avoiding code repetition. In addition, the macros automatically define a default constructor (i.e. a constructor without arguments), which is the one invoked when a simulation hierarchy gets constructed. Because it is not possible to add custom code to the default constructor, all data members of the class must be initialized in the class declaration using the curly brace syntax.

Of course, the class must implement its custom functionality. If setup is required, the SimulationItem::setupSelfBefore() or SimulationItem::setupSelfAfter() function must be overridden. Other functions may be declared and defined as needed. Also, when deriving from a particular abstract SimulationItem subclass, such as Geometry, additional requirements may apply, as described for that abstract subclass.

Finally, a line of code must be added to the constructor of the SimulationItemRegistry class to register the new simulation item class to the SMILE library.

This development process is illustrated in the hands-on Adding a new geometry class [TUTORIAL]. Also, there are many existing simulation item classes that can serve as an example.

Further background and reference information is provided in the following topics:

• The SimulationItem and Item classes – the base classes for all simulation items
• The Simulation class – the setup and run mechanism
• Using the SMILE library – simulation items are based on the SMILE functionality
• The SMILE metadata language – formal definition of discoverable property types and their allowed attributes
• The ItemInfo.hpp header file – macros for defining discoverable properties in the class declaration
